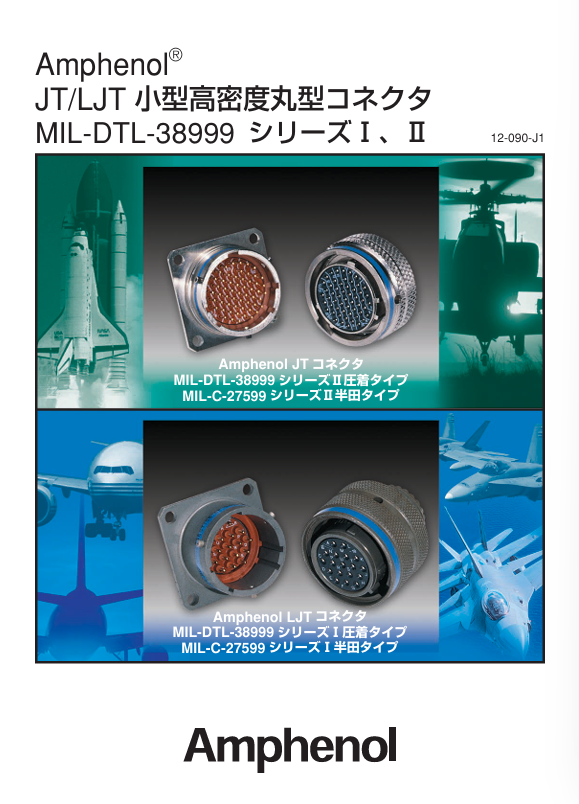

Amphenol® LJT and JT Series subminiature cylindrical
connectors are qualified to MIL-DTL-38999*, Series I and II
respectively. These connectors were developed to meet
the needs of the aerospace industries, and provided the
impetus for development of the MIL-C-38999 specifications,
which recently were superseded by MIL-DTL-38999. Meet
ing or exceeding MIL-DTL-38999 requirements, Amphenol®
JT/LJT connectors feature:
• Lightweight, Space Saving Design
• Contact Protection - 100% scoop-proof LJT design
prevents bent pins and short circuits during mating
• Quick Positive Coupling - 3 point bayonet lock
system
• Mismating Eliminated - with 5 key/keyway design
• Error Proof Alternate Positioning - insured by
different key/keyway locations
• EMI Shielding - grounding fingers standard in LJT
Series; optional in JT Series
• Nine Shell Sizes and a Variety of Shell Styles
• Contact Options - size 8, 10, 12, 16, 20, 22M and 22D
Crimp, Solder, PCB, Wire wrap, Coax, Twinax, Triax,
Thermocouple, Fiber Optic and Filter
• Fixed Solder Contacts - per MIL-C-27599 (see page
52 and Amphenol Product Data Sheet 158)
• Hermetic - air leakage limited to 1 X 10-7 cm3 per
second optional
• “Breakaway” Lanyard Release Style - available in
LJT plugs. Provides quick disconnect of the connector
plug and receptacle with axial pull on the lanyard. See
pages 38-41.
• Inventory Support Commonality - uses standard
MIL-DTL-38999 contacts, insert arrangements and
application tools.
• RoHS Compliant Product Available
Consult Amphenol Aerospace Operations.
MS27484T12F4SA
MS27484T20F35P
MS27484T14B35SA
MS27484T8F35S
MS27484T14B37P
MS27484T16B26P
MS27484T16B8SA
MS27484T18F66P
MS27484T22B35S
MS27484T12F98PA
MS27484T14B15SA
MS27484T14B97SA
MS27484T20F35PA
MS27484T22B55PA
MS27484T10F35SA
MS27484T8F35S
MS27484E10F98P
MS27484E12A3PA
MS27484E12A8SC
MS27484E12B22A
MS27484E10A35AA
MS27484E10A99SC
MS27484E10B13BC
MS27484E10B98AA
MS27484E10F98PB
MS27484E12B22AB
MS27484E12B3SC(LC)
MS27484E10A35SC(LC)
MS27484E10B98SC(LC)
MS27484E10F98SA(LC)
