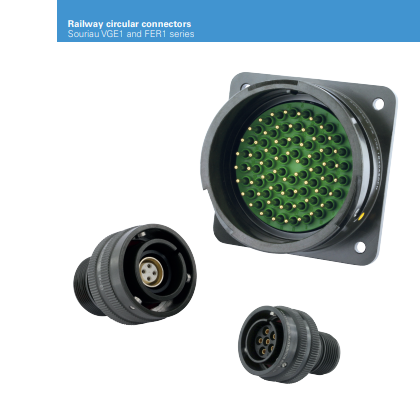

Materials
Shell
• Aluminum alloy, conductive plating
Insert
• Hard thermoplastic
• HL3/R22 & HL3/R23 following
EN 45545-2
• NFPA 130 compliant
• JRMA class 3
Contacts
• Machined crimp contacts / PCB
contacts
Mechanical
Design
• Derived from MIL-DTL-5015 and
VG 95234
Coupling system
• VGE1: 1/3 bayonet coupling with
an audible click and a yellow point
indicating end of coupling
• FER1: screw coupling
Durability
• 500 mating cycles
Shock and vibration resistance
• According to EN 61 373 - cat.2,
for cat. 3, refer to Eaton
Drop
• Free fall of plug at a height of
0.75 m, no mechanical damage
following NFF 61-030
Environmental
RoHS compliant
Operating temperature
• -40° C to +100° C
Dry heat test
• 100° for 96 hours
Salt spray resistance
• 500 hours
Damp heat
• 21 days, 40°C, 95% relative humidity
Sealing level
• IP67 when mated
Resistance to fluids
• Gas oil, mineral oil, acid bath,
basic bath, following NF F 61-030
• Oxalic acid
Electrical
Contacts resistance,
following NF F 61-030
• Contact #20: 6 mΩ max
• Contact #16: 2.5 mΩ max
• Contact #12: 1.3 mΩ max
• Contact #8: 0.9 mΩ max
• Quadrax contacts #20:
≤ 6 mΩ, ≤ 2 mΩ (cell)
Contact rating
• Contact #20: 7A
• Contact #16: 15A
• Contact #12: 20A
• Contact #8: 30A
• Dielectric resistance
• Contact #20: 1,500 volts/mm
• Contact #16: 2,550 volts/mm
• Contact #12: 3,250 volts/mm
• Contact #8: 3,250 volts/mm
• Quadrax between contacts #20:
≥ 1,000V
• Quadrax between cell / contacts
#20: ≥ 500V
Insulation resistance
• ≥ 3,000 MΩ (under 100 Vdc)
• ≥ 5,000 MΩ (under 500 Vdc)
• ≥ 4,000 MΩ (under 220 Vdc)
• Quadrax: ≥ 3,000 MΩ
(contacts #20)
Creepage and clearance
• 14A6: 6 mm creepage,
2 mm clearance
• 14A10: 2.1 mm creepage,
0.8 mm clearance
• 18-19, 22-14, 28-21, 40A60:
9 mm creepage, 4mm clearance
• 20-15, 24-10, 32A13, 36A22, 40A35:
• 12 mm creepage, 8mm clearance
Operating voltage
• 14A6: 110 V following NF F 61-030
• 14A10: 110V following EN 50-124
• 18-19, 22-14, 28-21, 40A60: 220 V
following NF F 61-030
• 20-15, 24-10, 32A13, 36A22, 40A35:
500 DC following NF F 61-030
Shell continuity
• 20 mΩ max
High speed data transmission
• IEC11-801
• Standard contact: cat. 5
• Quadrax contact: cat. 6
• For more than cat. 6,
refer to Eaton
VGE1D28-24SN-01
VGE1D2214SN
VGE1D2821SX
VGE1D2214PN
VGE1D28-21SN
VGE1D28-21SY
VGE1D28-24SN-01
VGE1D1819SN
VGE1D2821SN09
VGE1D18A1SN
VGE1D1819SY
VGE1D2821SN
VGE1D40A60SN
VGE1D2214S0
VGE1D2214SW
VGE1D2214SN
VGE1D1819P0
VGE1D2410SN
VGE1D2821SX
VGE1D2821SY
VGE1D2821PN
VGE1D2821SW
VGE1D2821SX
VGE1D2821SN
VGE1D2821SW
VGE1D2821SY
VGE1D2214SN
VGE1D2821S0
VGE1D14A6S0
VGE1D2214P0
