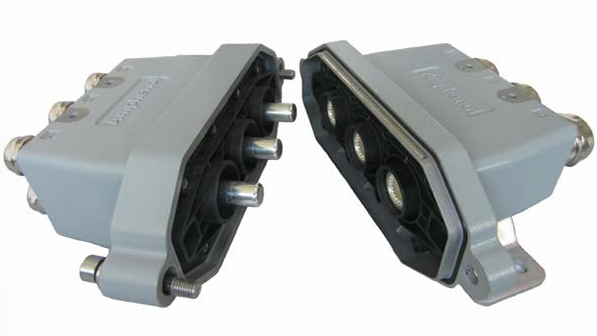

EMP-SM-33-PC-R10-D35

• 产品介绍

EMP SF 33 SC R10 D35
 EMP SM 33 PC R10 D35
 EMP SF 33  SC R18 D35
 EMP SM 33 PC  R18 D35
 EMP SF 3C  D35
 EMP SM 6C D35
 EMP SF 44 SC R10 D35
 EMP SM 44 PC R10 D35

 Material
■ Shell: Aluminium alloy
 ■ Insert: Thermoplastics
■ Contact: Copper alloy / silver plated / crimp type
 ■ Cable gland: Nickel plated brass
 Mechanical and Climatical
 ■ Vibrations and Shocks: Category 1, Class B (EN61373)
 ■ Operating temperature: -55℃ to 125℃
 ■ IP Class: IP67
 ■ Durability: 500 cycles
 Electrical data
 ■ Rated voltage: 3000 V r.m.s
 ■ Rated current: 250A max.
 ■ Cables: 25 to 70 mm2
 ■ Insulation resistance: 5000 MΩ Min.

 ■ Contact resistance: <0.3 mΩ
