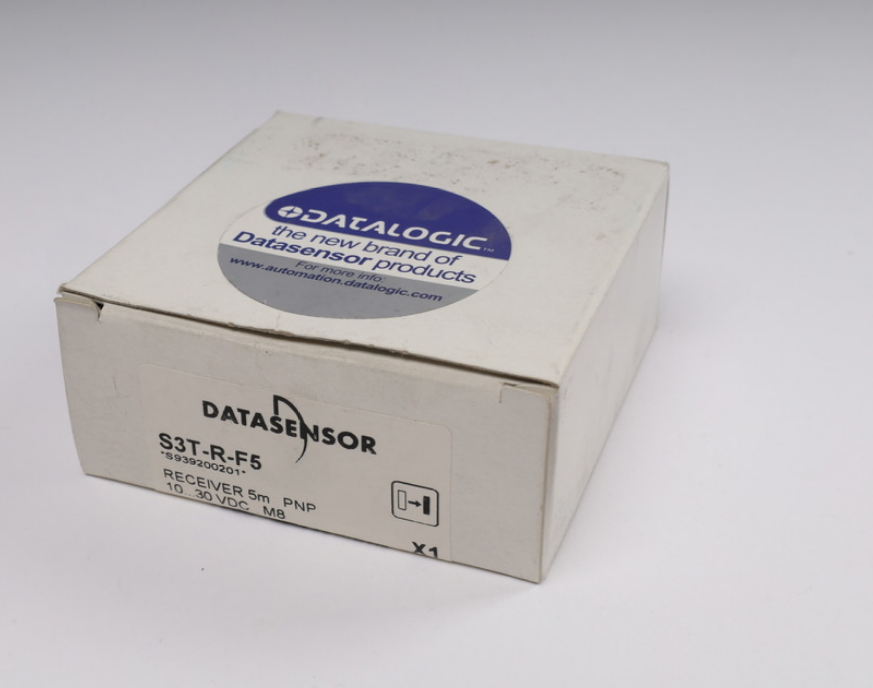

S3T-R-F5

The photoelectric sensors of the S3 series are characterised by particularly compact dimensions still offering excellent performances and a wide variety of models. The wide range of optic functions include diffuse proximity with distance adjustable up to 10 cm or 50 cm, or 12 mm fixed focus proximity. the retroreflex versions reach 3 m and are also available in the polarised version suitable for detecting shiny objects, or low hysteresis models to detect transparent objects. the 5 m through beam models complete the series, together with versions for the different fibre-optics available as accessories. All models offer trimmer sensitivity adjustment and Led stability indicator; the axial and lateral optics guarantee the same performances. maximum installation versatility and use are obtained thanks to the configurable output and miniature housing.

S3-R-C10 diffuse proximity lateral cable NPN/PNP S936530005

S3T-R-C10-P diffuse proximity lateral M8 connector PNP S939730201

S3-S-C10 diffuse proximity axial cable NPN/PNP S936530004

S3T-S-C10-P diffuse proximity axial M8 connector PNP S939730200

S3-R-C50 diffuse proximity lateral cable NPN/PNP S936530001

S3T-R-C50-P diffuse proximity lateral M8 connector PNP S939530201

S3-S-C50 diffuse proximity axial cable NPN/PNP S936530000

S3T-S-C50-P diffuse proximity axial M8 connector PNP S939530200

S3-R-D12 fixed focus proximity lateral cable NPN/PNP S936620001

S3T-R-D12-P fixed focus proximity lateral M8 connector PNP S939620201

S3-S-D12 fixed focus proximity axial cable NPN/PNP S936620000

S3T-S-D12-P fixed focus proximity axial M8 connector PNP S939620200

S3-R-A2,5 retroreflex lateral cable NPN/PNP S936330001

S3T-R-A2,5-P retroreflex lateral M8 connector PNP S939330201

S3-S-A2,5 retroreflex axial cable NPN/PNP S936330000

S3T-S-A2,5-P retroreflex axial M8 connector PNP S939330200

S3-R-B2 polarised retroreflex lateral cable NPN/PNP S936420001

S3T-R-B2-P polarised retroreflex lateral M8 connector PNP S939420201

S3-S-B2 polarised retroreflex axial cable NPN/PNP S936420000

S3T-S-B2-P polarised retroreflex axial M8 connector PNP S939420200

S3-R-T0,8 retroreflex for transp. lateral cable NPN/PNP S936330009

S3T-R-T0,8-P retroreflex for transp. lateral M8 connector PNP S939330209

S3-S-T0,8 retroreflex for transp. axial cable NPN/PNP S936330008

S3T-S-T0,8-P retroreflex for transp. axial M8 connector PNP S939330208

S3-R-E1 fibre-optic conn. lateral cable NPN/PNP S936820001

S3T-R-E1-P fibre-optic conn. lateral M8 connector PNP S939820201

S3-S-E1 fibre-optic conn. axial cable NPN/PNP S936820000

S3T-S-E1-P fibre-optic conn. axial M8 connector PNP S939820200

S3-R-F5 receiver lateral cable NPN/PNP S936200001

S3T-R-F5-P receiver lateral M8 connector PNP S939200201

S3-S-F5 receiver axial cable NPN/PNP S936200000

S3T-S-F5-P receiver axial M8 connector PNP S939200200

S3-R-G5 emitter lateral cable - S936130001

S3T-R-G5 emitter lateral M8 c
