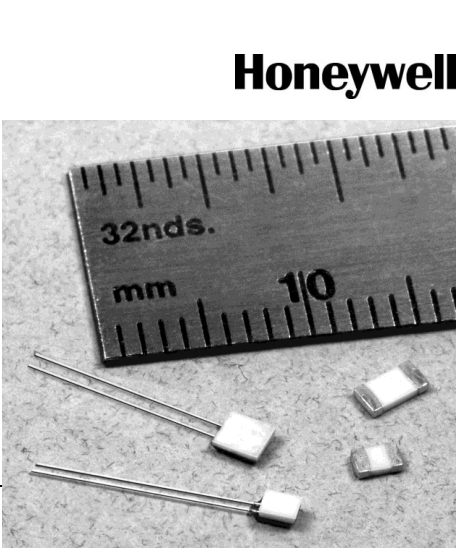

DESCRIPTION The 700 Series Platinum RTD (Resistance Temperature Detector) is an economical, miniature temperature sensor. The series is available in two different package configurations, leaded and SMT (Surface Mount Technology). Two sizes are available for each configuration, with the SMT available in industry standard 0805 and 1206 packages. The 700 Series has 100 and 1000 base resistances and is available in both the 3750 ppm/K and 3850 ppm/K temperature coefficients (375 and 385 alphas). The tolerances of the 700 Series meet DIN class A, DIN class B and DIN class 2B industry-standards. The 700 Series is RoHS (Restriction of Hazardous Substances) compliant (EU Directive 2002/95/EC).
700-101BAA-B00 700-101BAB-B00 700-102AAB-B00 700-102AAC-B00 700-102BAA-B00 700-102BAB-B00 701-101BAA-B00 701-101BAB-B00 701-102AAB-B00 701-102BAB-B00 702-101BBB-A00 702-102BBB-A00 703-101BBB-A00 703-102BBB-A00
