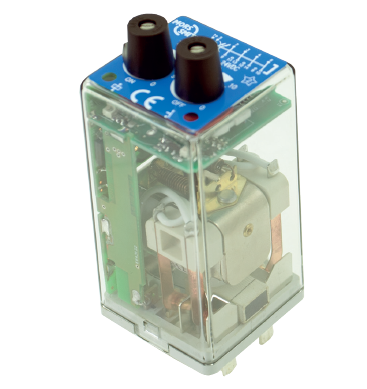

TDBE4-110VDC
MORS SMITT
TDBE4-110VDC 由 MORS SMITT 生产，采用 继电器 封装，批号 23+，芯微百年深圳仓库现货 1,210 个。
现货
- 库存量
- 1,210个
- 交期
- 待确认
- 最低订购量
- 1 个
该型号暂未公开报价，请索取报价。
完整规格
| 参数 | 值 |
|---|---|
| 型号 | TDBE4-110VDC |
| 厂商 | MORS SMITT |
| 所属类别 | 继电器 |
| 库存状态 | 现货 |
| 封装 | 继电器 |
| 生产批号 | 23+ |
| 库存量 | 1,210个 |
| 最低订购量 | 1 个 |
| 交期 | 待确认 |
产品详情
• Time delay relay with auxiliary supply
• Delay on pull-in and on drop-out
• 3 C/O contacts and 1 N/C contact
• Both delay times independently
adjustable with 2 lockable knobs
• Also available with 1 or 2 fixed time
delays (1 knob or none)
• Total time delay range: 0 s...120 min
• Magnetic arc blow-out
• Two LEDs for status indication
• Suitable for AC or DC voltage
• Flat, square and silver plated relay pins
for excellent socket connection
• Integrated snap lock
• Optional positive mechanical keying
• Delay on pull-in and on drop-out
• 3 C/O contacts and 1 N/C contact
• Both delay times independently
adjustable with 2 lockable knobs
• Also available with 1 or 2 fixed time
delays (1 knob or none)
• Total time delay range: 0 s...120 min
• Magnetic arc blow-out
• Two LEDs for status indication
• Suitable for AC or DC voltage
• Flat, square and silver plated relay pins
for excellent socket connection
• Integrated snap lock
• Optional positive mechanical keying
relay to socket
TDBE4-U201 TDBE4-U207 TDBE4-U202 TDBE4-U203 TDBE4-U205 TDBE4-U204 TDBE4-U301 TDBE4-U325 TDBE4-U305 TDBE4-U303
