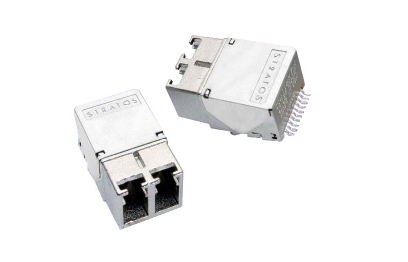

LTL-ST11H

Applications The LxPx-ST11xx multimode optical fiber transceivers provide low profile, cost effective solutions for InfiniBand multimode optical fiber data links with a duplex LC connector interface. These transceivers are fully compliant with the InfiniBand standards but can be used for any other data communications purpose within their operating parameters. Features • Low Profile Design - 0.386 inches max. height • Surface mount I/O pins for high speed signal integrity • All metal body, solder or screw mount options • Industrial Temp Range, Vibration tolerant design • RX data squelch on Signal Detect deassert • Individual (separate) +3.3 V power supply per port • Industry standard duplex multimode LC receptacle • Compliant with InfiniBand 1x Architecture • EN-60825 / IEC-825 / CDRH Class 1 Compliant • Optional Parylene C Conformal Coating • High Power options available • Optional addition of fiber pigtail
