XTR105PA
XTR105PA 由 BB 生产，采用 DIP-14 封装，批号 15+，芯微百年深圳仓库现货 2,510 只。
- 库存量
- 2,510只
- 交期
- 待确认
- 最低订购量
- 5 只
该型号暂未公开报价，请索取报价。
完整规格
| 参数 | 值 |
|---|---|
| 型号 | XTR105PA |
| 厂商 | BB |
| 所属类别 | 放大器和线性器件 |
| 库存状态 | 现货 |
| 封装 | DIP-14 |
| 生产批号 | 15+ |
| 库存量 | 2,510只 |
| 最低订购量 | 5 只 |
| 交期 | 待确认 |
产品详情

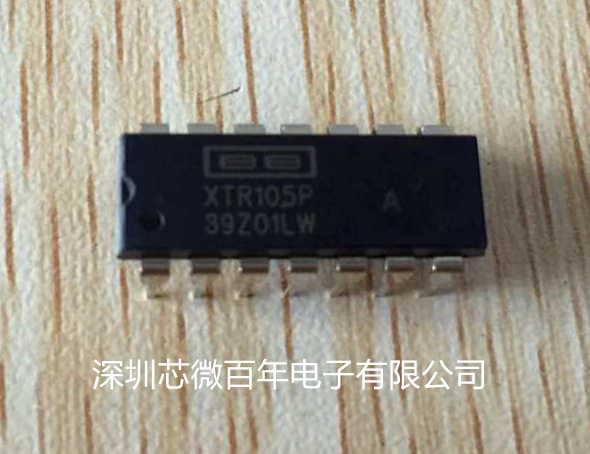

XTR105PA2线带RTD传感器和激励源的变送器由BB原厂生产,采用DIP-14封装,批号15+,微芯百年集成电路仓库目前有库存
描述
The XTR105 is a monolithic 4-20mA, 2-wire current transmitter with two precision current sources. It provides complete current excitation for platinum RTD temperature sensors and bridges, instrumentation amplifiers, and current output circuitry on a single integrated circuit.
Versatile linearization circuitry provides a 2nd-order correction to the RTD, typically achieving a 40:1 improvement in linearity.
Instrumentation amplifier gain can be configured for a wide range of temperature or pressure measurements. Total unadjusted error of the complete current transmitter is low enough to permit use without adjustment in many applications. This includes zero output current drift, span drift, and nonlinearity. The XTR105 operates on loop power-supply voltages down to 7.5V.
The XTR105 is available in DIP-14 and SO-14 surface-mount packages and is specified for the –40°C to +85°C industrial temperature range.
特性
- LOW UNADJUSTED ERROR
- TWO PRECISION CURRENT SOURCES: 800 µA each
- LINEARIZATION
- 2-OR 3-WIRE RTD OPERATION
- LOW OFFSET DRIFT: 0.4 µV/°C
- LOW OUTPUT CURRENT NOISE: 30NAPP
- HIGH PSR: 110dB minimum
- HIGH CMR: 86dB minimum
- WIDE SUPPLY RANGE: 7.5V to 36V
- DIP-14 AND SO-14 PACKAGES
-
APPLICATIONS
- INDUSTRIAL PROCESS CONTROL
- FACTORY AUTOMATION
- SCADA REMOTE DATA ACQUISITION
- REMOTE TEMPERATURE AND PRESSURE TRANSDUCERS
