MMA7261QT

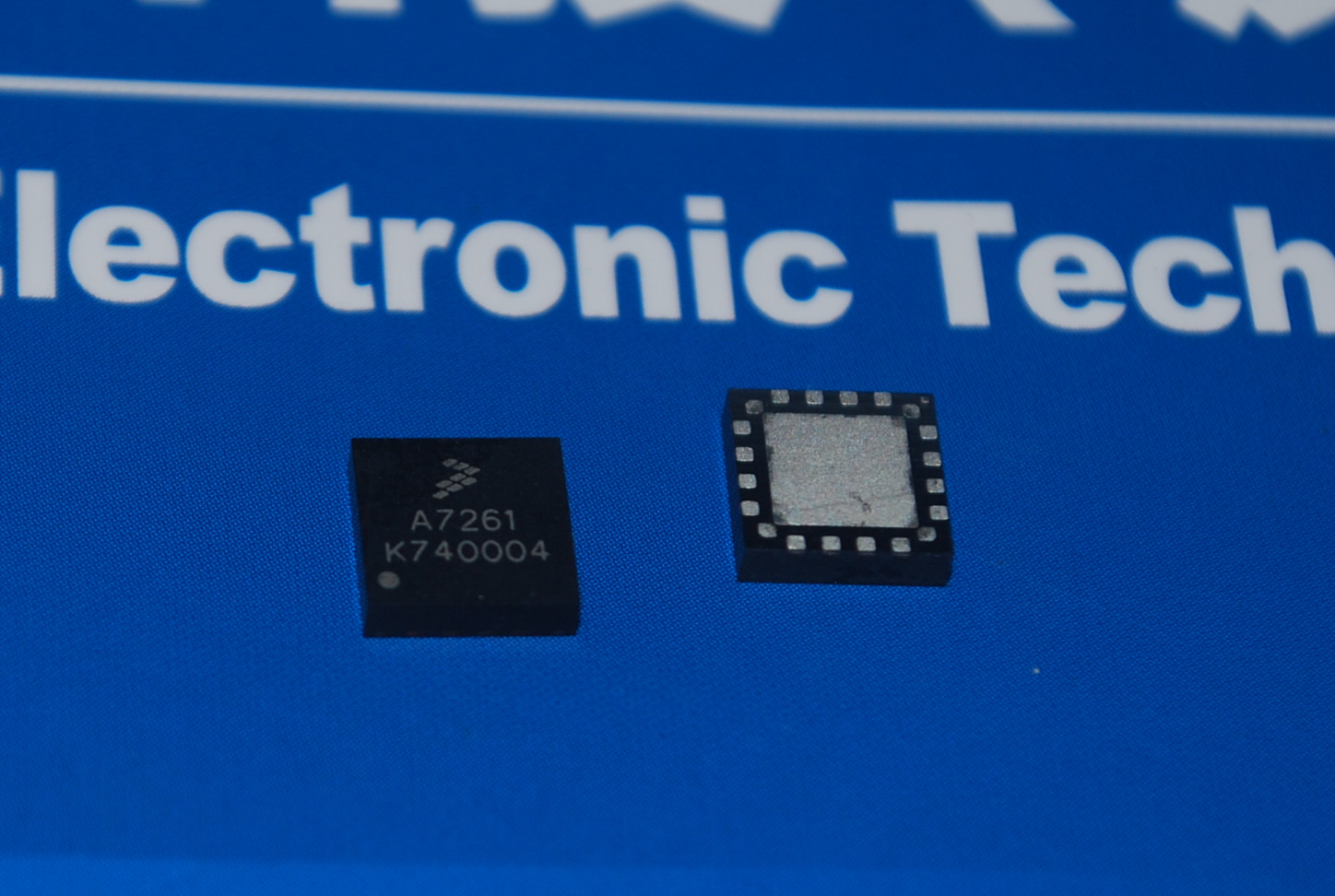

产品图片仅供参考
欢迎索取产品详细资料

MMA7261QT

  • 所属类别：传感器
  • 产品名称：传感器
  • 厂商：FREESCALE
  • 生产批号：11+
  • 封装：QFP
  • 库存状态：有库存
  • 库存量：900
  • 最低订购量：1
  • 详细资料：点击查找MMA7261QT的pdf资料
  • 点击询价
联系我们 在线客服1 在线客服2 点击发送邮件
  • 产品介绍

MMA7261QT  传感器

The MMA7261 low cost capacitive micromachined accelerometer features signal conditioning, a 1-pole low pass filter, temperature compensation and g-Select which allows for the selection among 4 sensitivities. Zero-g offset full scale span and filter cut-off are factory set and require no external devices. This device includes a sleep mode that makes it ideal for handheld battery powered electronics.




Features


  • Selectable Sensitivity (2.5g/3.3g/6.7g/10g)
  • Low Current Consumption: 500 micro amps
  • Sleep Mode: 3 micro amps
  • Low Voltage Operation: 2.2 V – 3.6 V
  • 6mm x 6mm x 1.45mm QFN
  • Fast Turn On Time: 1ms
  • High Sensitivity (2.5 g)
  • Integral Signal Conditioning with Low Pass Filter
  • Robust Design, High Shocks Survivability
  • Environmentally Preferred Package
  • Low Cost
