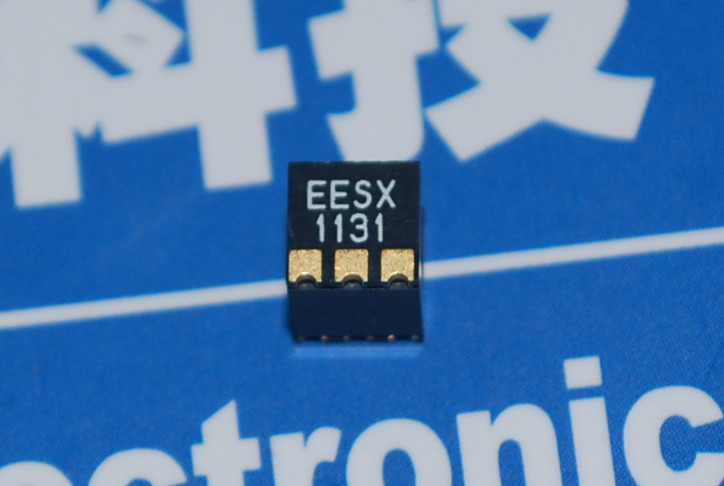

EE-SX1131
OMRON
EE-SX1131 由 OMRON 生产，采用 SMD 封装，批号 11+，芯微百年深圳仓库现货 5,000 只。
现货
- 库存量
- 5,000只
- 交期
- 待确认
- 最低订购量
- 10 只
该型号暂未公开报价，请索取报价。
完整规格
| 参数 | 值 |
|---|---|
| 型号 | EE-SX1131 |
| 厂商 | OMRON |
| 所属类别 | 传感器-敏感元器件 |
| 库存状态 | 现货 |
| 封装 | SMD |
| 生产批号 | 11+ |
| 库存量 | 5,000只 |
| 最低订购量 | 10 只 |
| 交期 | 待确认 |
产品详情
EE-SX1131全新原装由OMRON原厂生产,采用SMD封装,批号11+,微芯百年集成电路仓库目前有库存
Manufacturer:Omron
Product Category:Optical Switches, Transmissive, with Phototransistor Output
RoHS: Details
Aperture Width:0.3 mm
Collector- Emitter Voltage VCEO Max:20 V
Fall Time:10 us
Forward Current:5 mA
Maximum Collector Current:20 mA
Maximum Operating Temperature:+ 85 C
Minimum Operating Temperature:- 30 C
Mounting Style:SMD/SMT
Output Device:Phototransistor
Packaging:Reel
Power Dissipation:75 mW
Rise Time:10 us
Sensing Distance:2 mm
Sensing Method:Transmissive, Slotted
Slot Width:2 mm
Factory Pack Quantity:2000
Wavelength:940 nm
Part # Aliases:367416 EESX1131NC
Product Category:Optical Switches, Transmissive, with Phototransistor Output
RoHS: Details
Aperture Width:0.3 mm
Collector- Emitter Voltage VCEO Max:20 V
Fall Time:10 us
Forward Current:5 mA
Maximum Collector Current:20 mA
Maximum Operating Temperature:+ 85 C
Minimum Operating Temperature:- 30 C
Mounting Style:SMD/SMT
Output Device:Phototransistor
Packaging:Reel
Power Dissipation:75 mW
Rise Time:10 us
Sensing Distance:2 mm
Sensing Method:Transmissive, Slotted
Slot Width:2 mm
Factory Pack Quantity:2000
Wavelength:940 nm
Part # Aliases:367416 EESX1131NC
