FPS009-2409-0
YAMAICHI
FPS009-2409-0 由 YAMAICHI 生产，采用 SMD 封装，批号 12+，芯微百年深圳仓库现货 900 个。
现货
- 库存量
- 900个
- 交期
- 待确认
- 最低订购量
- 1 个
该型号暂未公开报价，请索取报价。
完整规格
| 参数 | 值 |
|---|---|
| 型号 | FPS009-2409-0 |
| 厂商 | YAMAICHI |
| 所属类别 | 网卡类芯片Network card chip |
| 库存状态 | 现货 |
| 封装 | SMD |
| 生产批号 | 12+ |
| 库存量 | 900个 |
| 最低订购量 | 1 个 |
| 交期 | 待确认 |
产品详情
FPS009-2409-0

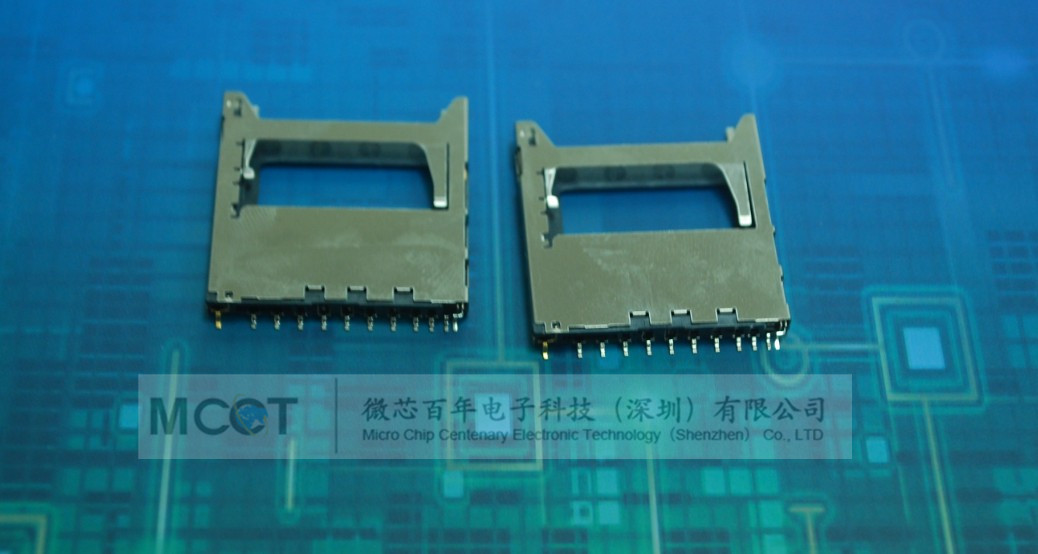

FPS Series Card Connector for SD Card and MMC Reader
有货供应
The FPS009-2409-0 is a Part of FPS Series, Card Connector for SD Card and MMC Reader. Its operating Temperature Range from –25 °C to +85 °C.
Features:
- Connector for both card types (MMC and SD card)
- Card detector
- Smooth extraction function by Push-in/ Push-out of card
- Write protection switch
- Soft lock mechanism for SD card
- Mechanism to avoid fling-off with the card
- Low profile (Ht. 2.8 x W. 28.0 x L. 30.5)
- Tape & Reel packaging (600 pcs / reel)
- Two-point contact, protection against electrical interruption
Specifications:
- Insulation Resistance: 1,000 MΩ min. at 500 V DC
- Withstanding Voltage: 500 V ACrms for 1 minute
- Contact Resistance: 100 mΩ at 1 mA / 20 mV max.
- Voltage Rating: 250 Vrms AC
- Current Rating: 0.5 A
- Coplanarity: < 0.1 mm
- Mating Cycles: 10,000 (office environment)
