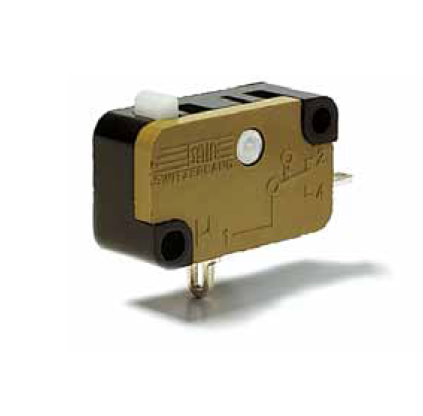

XGG12-81-P23Z1
产品图片仅供参考
欢迎索取产品详细资料

XGG12-81-P23Z1

  • 所属类别:开关
  • 产品名称:微动开关/全新原装
  • 厂商:Johnson Electric Group
  • 生产批号:2020+
  • 封装:开关
  • 库存状态:有库存
  • 库存量:120
  • 最低订购量:1
  • 详细资料:点击查找XGG12-81-P23Z1的pdf资料
  • 点击询价
联系我们 在线客服1 在线客服2 点击发送邮件
  • 产品介绍
Housing Melamine-Formaldehyd. Thermosetting
Plunger POM, PPS, MF depending on temperature/type
Mechanism Snap-action, single pole beryllium bronze blade mechanisme with wiping contacts
Functions Change-over, normally-closed (except XGG and XGK) or normally-open
Contacts Fine silver (Ag), silver nickel (AgNi10), gold-plated (Au), silver cadmium oxide (AgCdO)
Terminals Solder, faston, screw, PCB and side mounting PCB terminals. RAST 5 terminals (5,0 mm pitch)
Temperature range ºC -40°C to +150°C
Mechanical life 2,5 · 105 cycles minimum, 50 · 106 cycles maximum
(Actuation: sinusoidal and maximum up to 80% of the overtravel)
Protection Enclosure IP40
Mounting Side mounting via mounting holes

Actuators Stainless steel

XGG2-88Z1  XGG2-88-J23Z1  XGG2-88-J26Z1 XGG2-88-J27Z1 XGG2-88-S20Z1 XGG2-88-S21Z1 XGG3-88Z1  XGG6-88Z1 XGC2-88Z1  XGC2-88-J23Z1  XGC2-88-S20Z1   XGC6-88Z1  XGK2-88Z1 XGK2-88-J26Z1   XGK2-88-S21Z1  XGK3-88Z1 XGK6-88Z1 XGO2-88Z1 XGO2-88-J27Z1  XGO2-88-S20Z1  XGO6-88Z1
